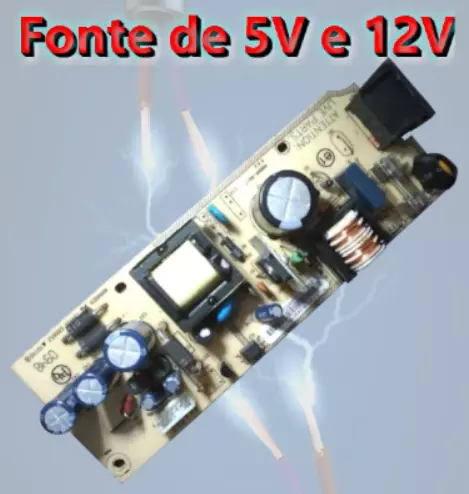

Placa de Fonte de Alimentação 12V e 5V

Descrição

Placa de Fonte de Alimentação com conector para entrada 110/220V e Saída GND 12V/1A 5V/4A PSD PCS, dimensões 16cm de comprimento e 5,5cm de largura.

Features:

• Universal Input 90 ~ 264Vac, 47 ~ 63Hz.
• Wide Operating Ambient Temp. -20 ~ +70°C.
• AC Input Voltage: Universal 90 ~ 264Vac
• Efficiency: 80% typ.
• Output Voltage: +5V, +12V
• Rated Load: 4A / +5V, 1A / +12V
• Output Power: 32W
• Hold Up Time: ≧ 16mS @ 115Vac, 70% Rating Load.
• Operating Temp.: -20 ~ +70°C.

Application:

• Storage Device.
• Telecommunication Equipment.
• Industrial Equipment.
• Network Equipment.

Placa de Fonte de Alimentação com conector para entrada 110/220V e Saída GND 12V/1A 5V/4A PSD PCS, dimensões 16cm de comprimento e 5,5cm de largura. Universal Input 90 ~ 264Vac, 47 ~ 63Hz, Wide Operating Ambient Temp. -20 ~ +70°C, AC Input Voltage Universal 90 ~ 264Vac, Efficiency 80% typ, Output Voltage +5V, +12V, Rated Load: 4A / +5V, 1A / +12V, Output Power 32W, Hold Up Time: ≧ 16mS @ 115Vac, 70% Rating Load, Operating Temperature -20 ~ +70°C, Storage Device, Telecommunication Equipment, Industrial Equipment, Network Equipment. Placa de Fonte de Alimentação com conector para entrada 110/220V e Saída GND 12V/1A 5V/4A PSD PCS, dimensões 16cm de comprimento e 5,5cm de largura. Universal Input 90 ~ 264Vac, 47 ~ 63Hz, Wide Operating Ambient Temp. -20 ~ +70°C, AC Input Voltage Universal 90 ~ 264Vac, Efficiency 80% typ, Output Voltage +5V, +12V, Rated Load: 4A / +5V, 1A / +12V, Output Power 32W, Hold Up Time: ≧ 16mS @ 115Vac, 70% Rating Load, Operating Temperature -20 ~ +70°C, Storage Device, Telecommunication Equipment, Industrial Equipment, Network Equipment.
